MT7601BE
-
DESCRIPTION

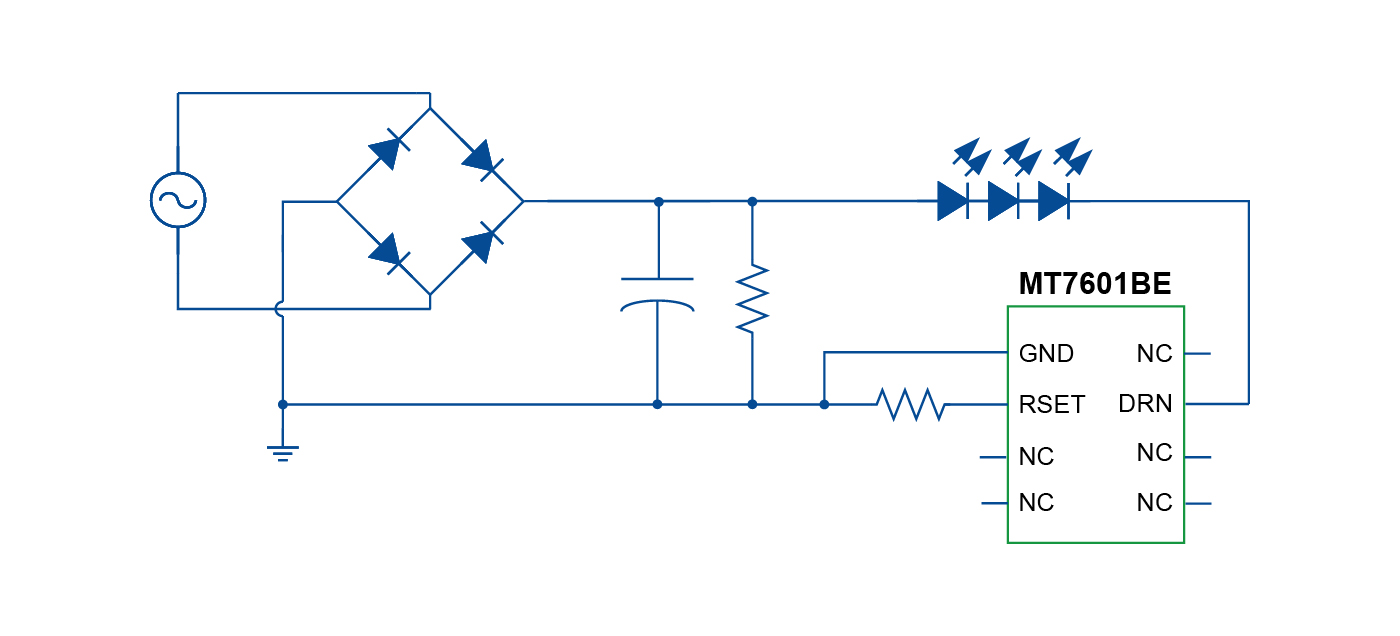

MT7601BE is a high current precision linear LED driver IC. The output constant current is programmable by an external resistor.
MT7601BE integrates high voltage power MOSFET and high voltage power supply circuit, the peripheral circuit is simplified. It can easily pass EMI without inductor, transformer or other magnetic components, low BOM cost is achieved.
MT7601BE is designed with thermal regulation function to balance the output power and system temperature. The output current will be reduced while the junction temperature goes higher than the threshold, system reliability is guaranteed.
-
FEATURES
Few external components, low BOM cost
Integrated with 700V power MOSFET
LED current set by external resistor
Constant current precision: ±5%
Low EMI interference
Embedded thermal regulation function ? Available in ESOP8 package
-
LED candle, filament lamp
-
LED fluorescent, panel light
-
LED Bulb, projection lamp
-
Other compact LED lightings
